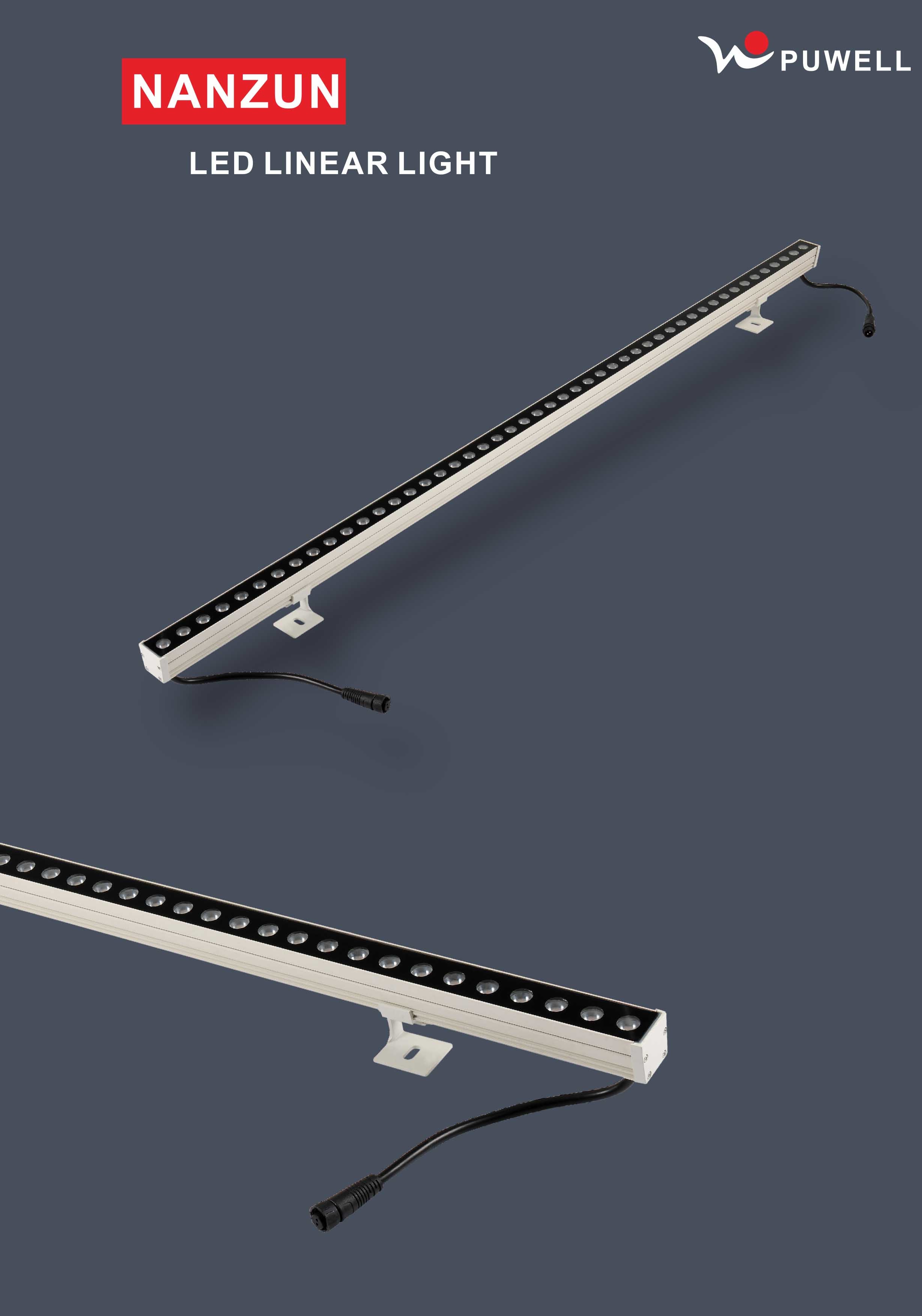

RGB 12W LED Linear Strip Light low voltage led strip lights

Product advantages

1. Hi-Power linear luminaire of fashionable appearance and improved heat dissipation performance;

2. Light body adopts ＃6063 aluminum alloy molding of anodized surface; lampshade is made of high-strength toughened glass of anti-impact, anti-friction and rainwater-cleaning quality;

3. CREE LEDs enable higher output of luminous flux and finer color-rendering property;

4.Triple waterproof design.toughened glass lampshade impact-proof full filling waterproof design waterof rubber seal ip65 waterproof dustproof builit-in waterproof drive

5. Powerful DMX512 interface adopts high-reliable bus connector of DMX online auto-addressing function;

6. Three rack-mounting ways meet various occasional demands of outdoor projects;

7. Three-year limited warranty.

DESIGN INSPIRATION

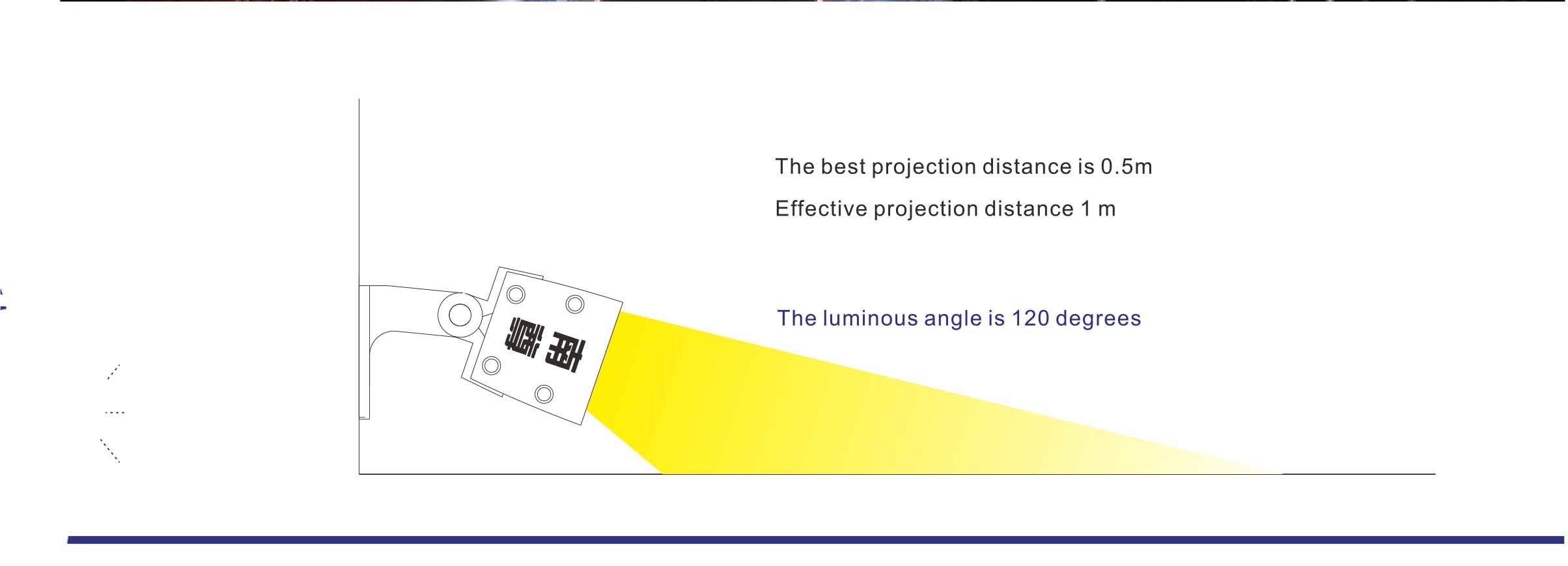

VISUAL ANGLE

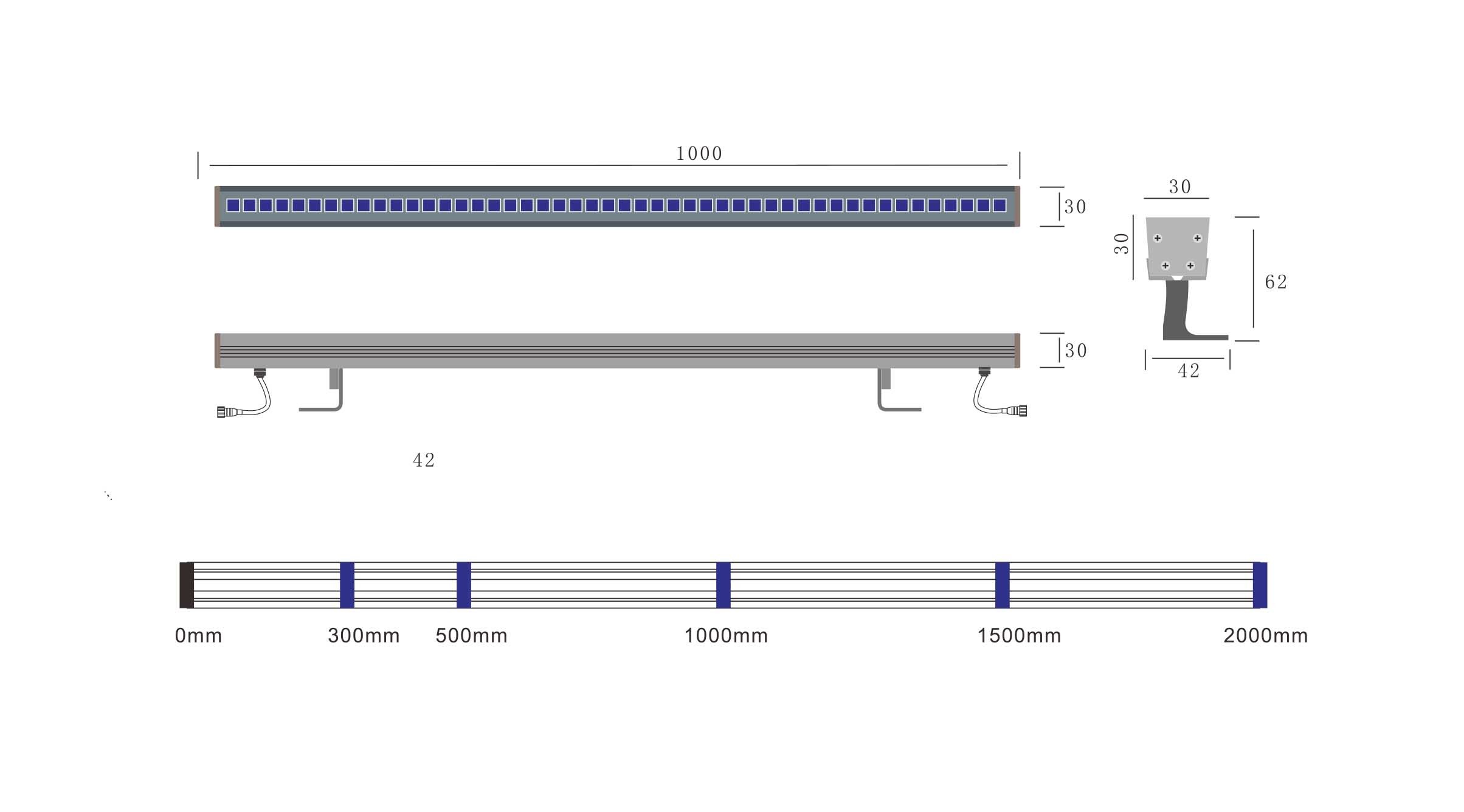

DIMENSIONAL DRAWING

INSTALLATION DIAGRAM

COLOR AVAILABLE

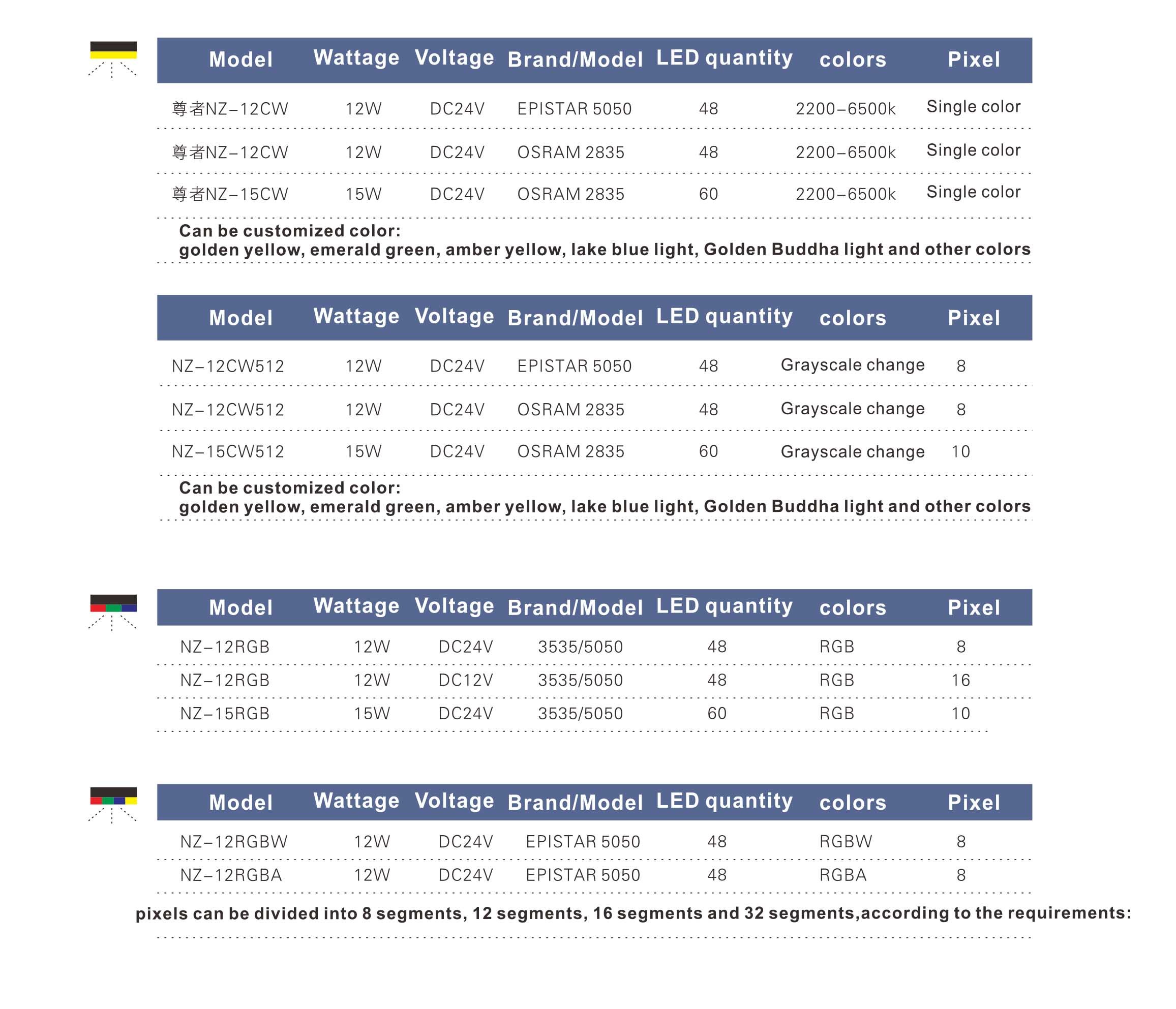

PRODUCT SELECTION

Product Advantages of DMX Linear Bar Series (Betterway Hotspot Product Series )

Size is slim,Shape is smart ,Quality is stable .

One LED one pixel ,3 LEDS One pixel,6 LEDS one pixel or customzied .

High grayscale 65536(16 bit).

Seamless connection .

Voltage DC12V ,DC24V,DC36V,DC48V.

Detachable connector .

Various sizes are available .

Type :Single Color ;DMX Single color 'DMX RGB;DMX RGBW.

Product Descriptions

1.Adopt high brightness SMD5050 which it's UV resistant ,Waterproof ,Dustproof .

2.The structure of this series can be seamless stitching .

3.The bar shell can be sprayed with the requirement color to fit the project .

4.Back side has trunking,cables can be hidden,to reduce the cable aging and extra tibet wire cost .

5.Surface with special material ,strong anti-yellowing properties ,hardy till minus 40℃.

6.Can live working ,resistant hot swappable .

7.constant current design .

8.Diversification installation .

9.Fully support color fading ,skipping ,scanning ,chasing ,play flash and vedio to music ,etc..

10.Compatible with MADRIX and BW software and other softwares .

11.Length:0.5M,1M,1.5M,2M or customized .

12.Energy-saving ,Low-cost maintenance ,Long-life span .

Applications

It is a perfect product for Entertainment and Architecture lighting such as Big TV Show ,Music Festival ,Stage Design ,Disco Clubs ,Outline of building and bridge ,Display screen and son on .
