RGBW LED Linear Strip Light 12W RGB

High brightness outdoor ETL CETL Certificate External wall Rgb Rgbw Led clearance lamp

1. Trade fairs and exhibitions.

2. Lighting for awnings, corridors, arches, Windows and other buildings.

3. Downlight or lift light is used for wall cleaning

4. Commercial residential landscape lighting.

5. Sculpture lighting.

Shell length can be customized according to customer requirements.Can be in monochrome or RGB/RGBW format

Double sealant, more waterproof

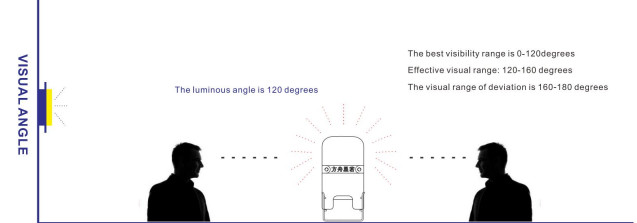

VISUAL ANGLE

DIMENSIONAL DRAWING

INSTALLATION DIAGRAM

​

COLOR AVAILABLE

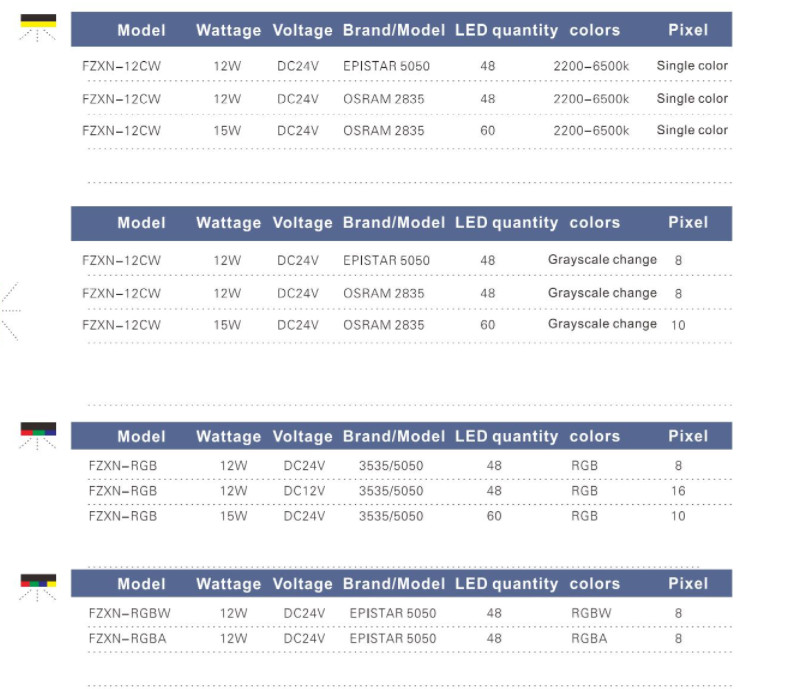

PRODUCT SELECTION

Factory prices facade outline lighting 50mm width 24W led linear light 1M outdoor PC cover dmx 512 led light linear bar

Product Description
Betterway Linear Bar Main Features:

1.Large illuminated space :50mm width with large light-emitting area

2.Adopting 96 pcs leds --Uniform light mixing and with high brightness

3.Special treatment ,fully waterproof

4.65536 16 Bits high grayscale & with Excellent light distribution

5.Seamless connection :adopt light transmission plug ,no dark space at the joint

Product Advantages of DMX Linear Bar Series (Betterway Hotspot Product Series )

Size is slim,Shape is smart ,Quality is stable .

One LED one pixel ,3 LEDS One pixel,6 LEDS one pixel or customzied .

High grayscale 65536(16 bit).

Seamless connection .

Voltage DC12V ,DC24V,DC36V,DC48V.

Detachable connector .

Various sizes are available .

Type :Single Color ;DMX Single color 'DMX RGB;DMX RGBW.

Product Descriptions

1.Adopt high brightness SMD5050 which it's UV resistant ,Waterproof ,Dustproof .

2.The structure of this series can be seamless stitching .

3.The bar shell can be sprayed with the requirement color to fit the project .

4.Back side has trunking,cables can be hidden,to reduce the cable aging and extra tibet wire cost .

5.Surface with special material ,strong anti-yellowing properties ,hardy till minus 40℃.

6.Can live working ,resistant hot swappable .

7.constant current design .

8.Diversification installation .

9.Fully support color fading ,skipping ,scanning ,chasing ,play flash and vedio to music ,etc..

10.Compatible with MADRIX and BW software and other softwares .

11.Length:0.5M,1M,1.5M,2M or customized .

12.Energy-saving ,Low-cost maintenance ,Long-life span .

Applications

It is a perfect product for Entertainment and Architecture lighting such as Big TV Show ,Music Festival ,Stage Design ,Disco Clubs ,Outline of building and bridge ,Display screen and son on .

Shenzhen Puwei Lighting Technology Co., Ltd. is a high-tech enterprise focusing on the research, development, production and sales of linear light source products. It is inspired to innovate cross era products, innovate high-efficiency products, create high-efficiency products with the lowest effect, and strive to establish industry standards.

After years of development, it has achieved a full range of product coverage system:

In 2016, we developed the RGB seamless butt led contour lamp (Yuhuo Minxin, ark Xingnuo)

In 2017, we developed four series of LED wall washing lamps (low-power wall washing lamps, high-power wall washing lamps, buried wall washing lamps and indoor wall washing lamps)

In 2018, we developed LED line pixel lights (giant gate star, Yuhuo Zhongxin)

In 2018, we will develop traffic road signal lights (floor tile line traffic lights, zebra crossing traffic lights, anti-collision pillar traffic lights, stop line traffic lights, bicycle lane line traffic lights)

In 2019, we will develop LED chandelier, LED ring chandelier, shopping mall lighting, hotel lighting, and led modeling lamp

In 2020, we will develop a mobile app control system for LED round moon lamp, LED intelligent office lighting, LED intelligent lighting and led 5g lighting

We strive to create the beauty of architecture, and achieve the beauty of architecture with light and shadow technology.

Innovation at the same time do not forget the originality of the scheme, building lamps and lanterns integration, lamps and lanterns combined with architecture, architecture with lamps.

Architecture is the foundation, lamps and lanterns are auxiliary. Light is used to show the beauty of the building itself.
